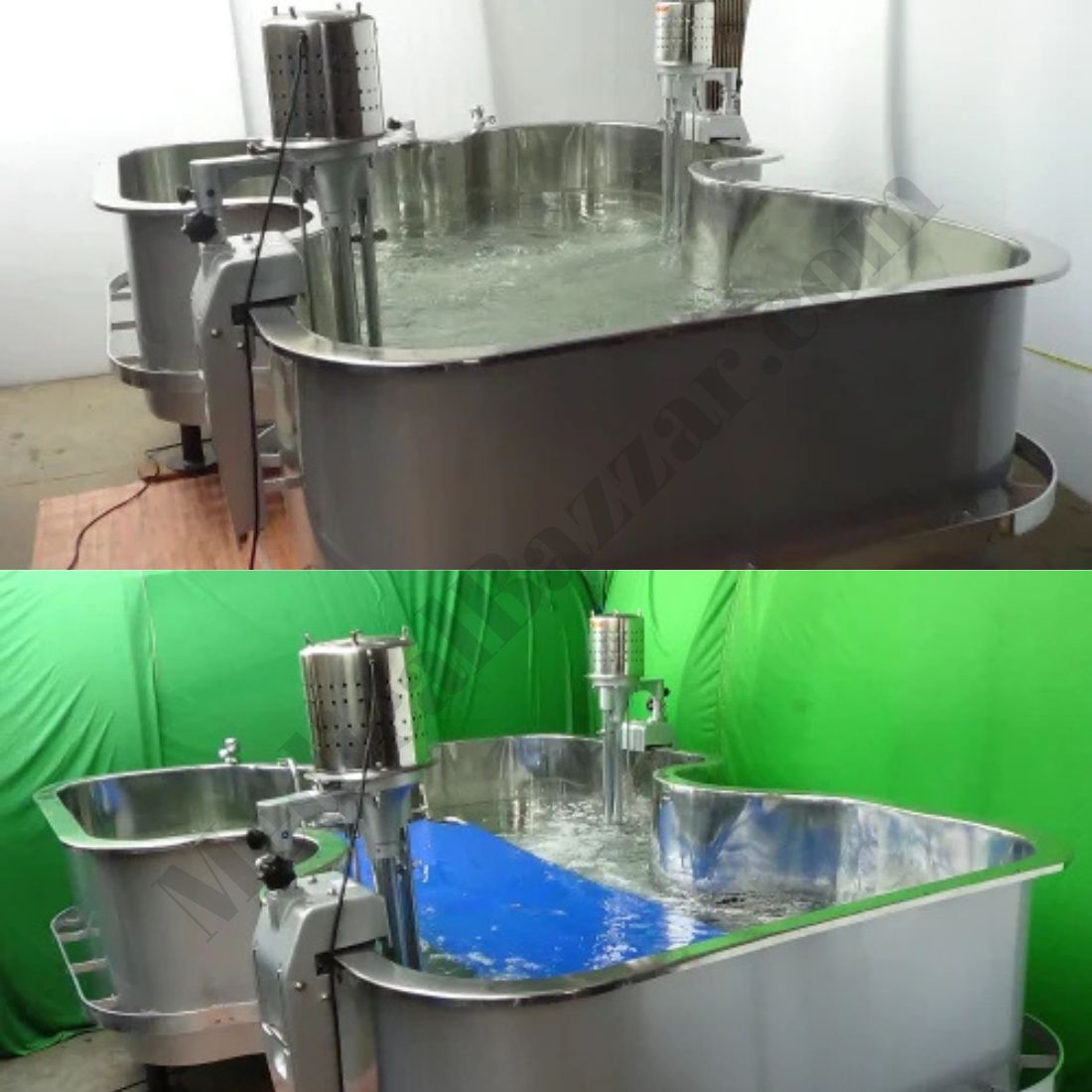

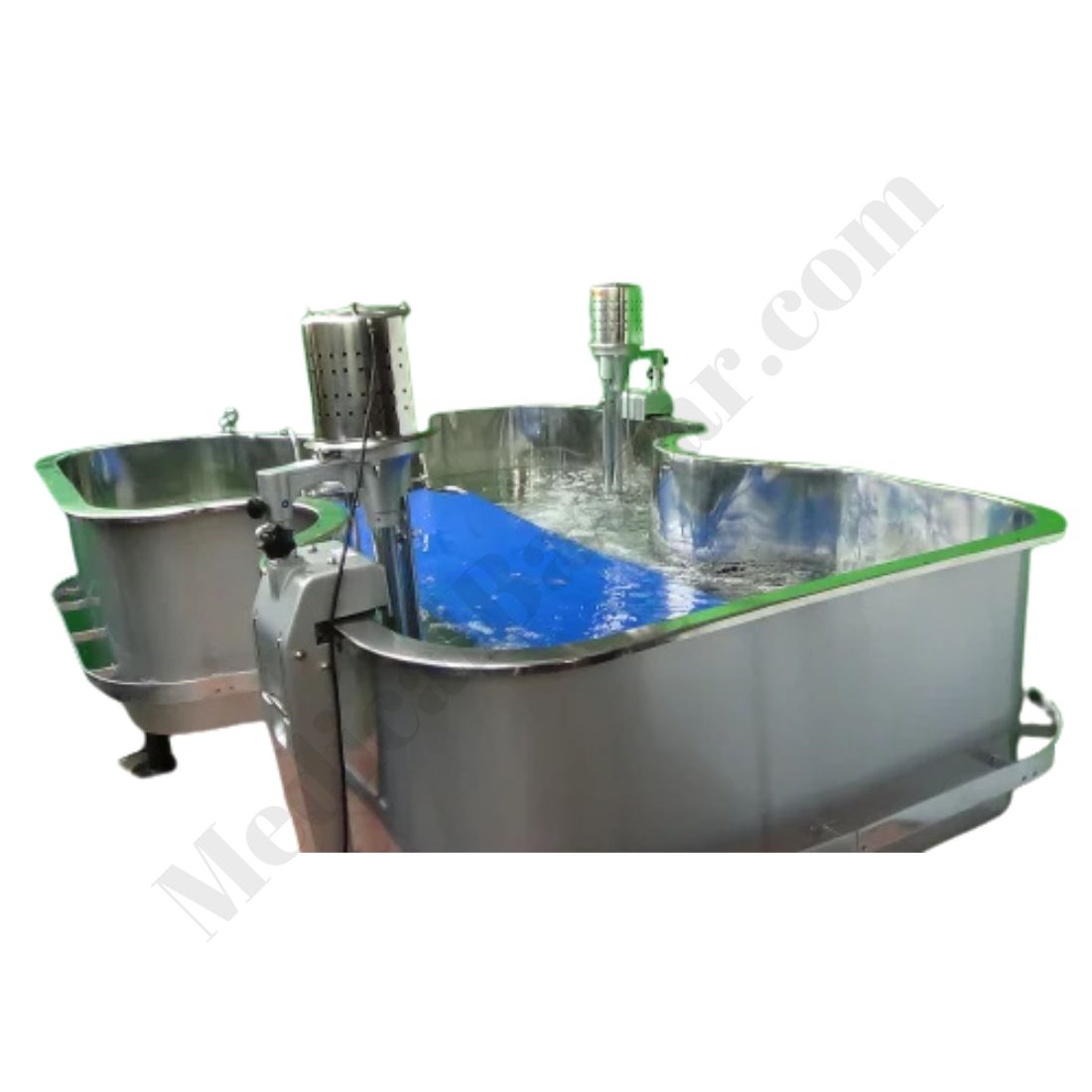

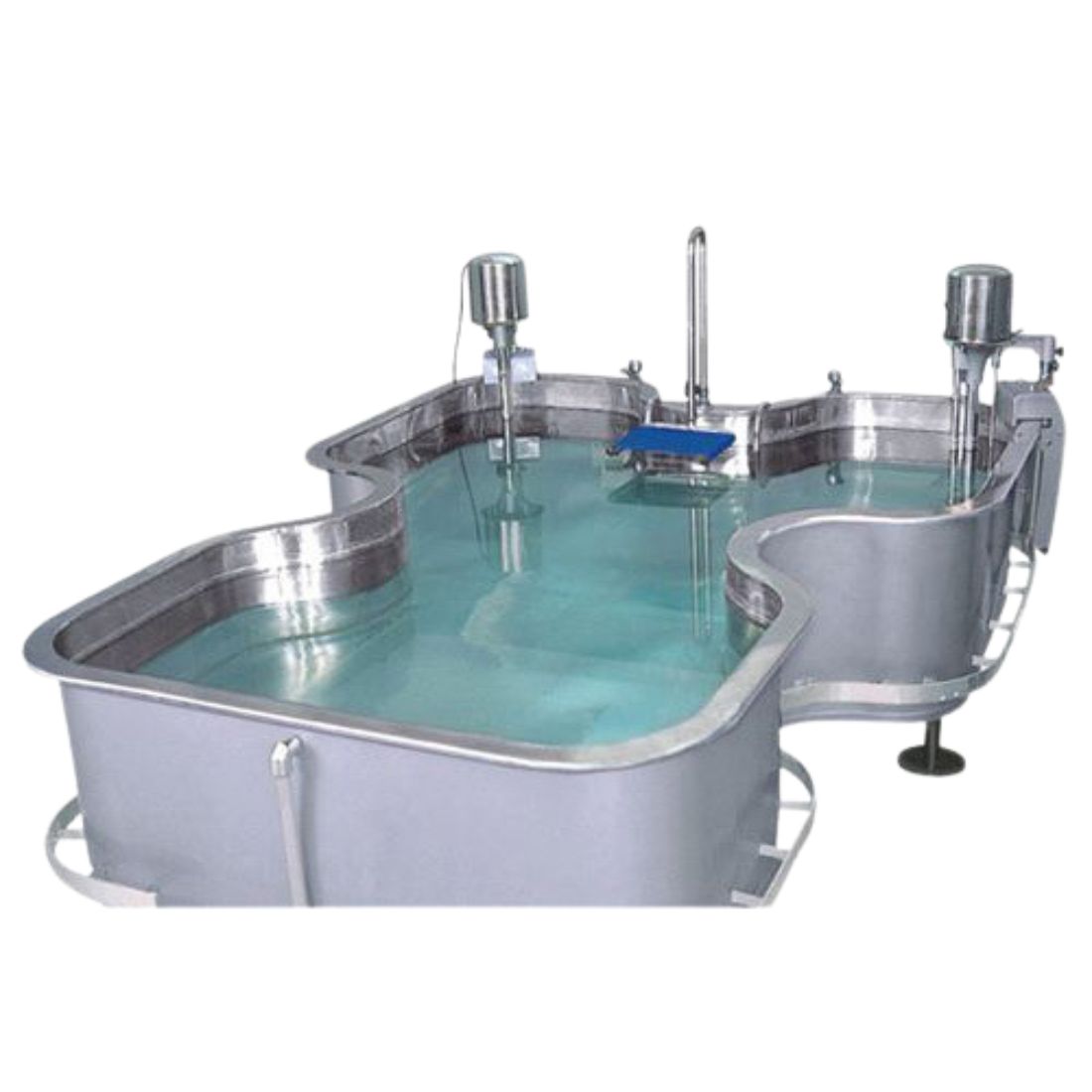

acco Hydrotherapy Tank, Butterfly Shape Pool

AMP-032502 - acco Hydrotherapy Tank, Butterfly Shape Pool for physiotherapy

Designed for permanent installations with direct connections to drain, Hot & Cold water supply and overflow. Constructed of heavy gauge (14 & 16gauge) stainless steel sheet, electrically Argon welded tank is shaped to Butterfly modified figure.
The shape & dimensions of the tank allows various arm & leg exercises to be carried out without hitting to the sides. The recessed areas at the head and sides of the bath provide good access for the therapist when monitoring & assisting the patient.

SPECIFICATIONS:

• Overall dimension: 266cm x 196cm x 86cm high.
• Inside dimension: Length to inset 218cm. Width upper part 183cm. Width of middle narrow part 89cm. Width of lower part 135cm. Depth is 56cm.
• Turbine Ejectors, Aerators & Carriages.: TWO, with 1/2 H.P. motors. -Ejectors with elevators on ball bearing carriages.
• Power Supply: 220 V AC.
• Accessories: One digital thermometer, 2 water inlets, drain and overflow pipes with all necessary fitting.
• Adjustable Head-Rest, Body Stretcher and Sitting seat fitted with nylon cloth.
• Finish: Tank is finished bright inside and painted outside.
• Note: A separate room or hall is required for this unit with 220V AC power supply, Hot & Cold water supply and water drainage.
