Continuous Passive Motion Unit (Elbow & Wrist)

Continuous Passive Motion Unit (Elbow & Wrist) - AMP-033142

Elbow & Wrist CPM "PANKAJ" is a Micro-Computer controlled unit that represents the latest breakthrough in CPM technology.

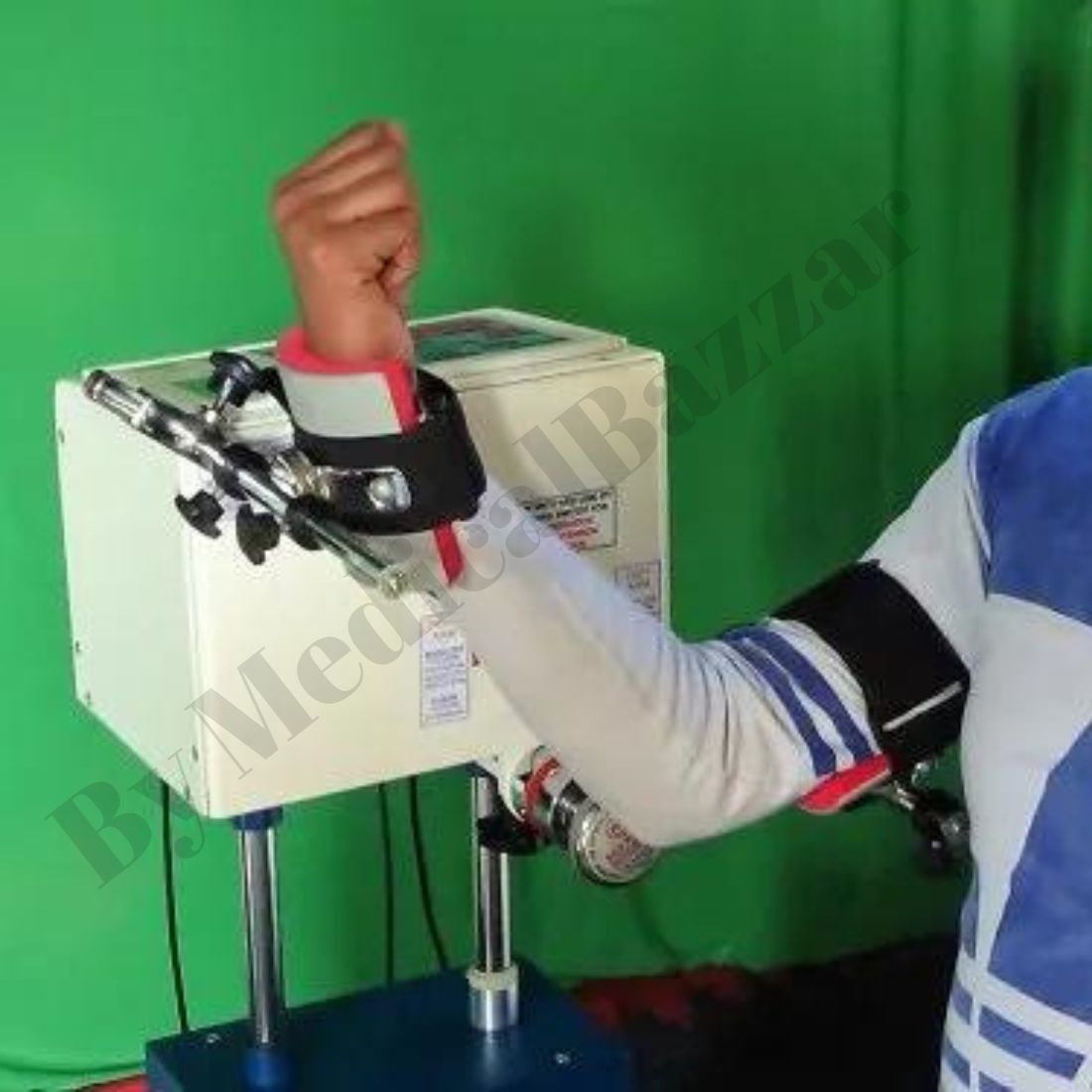

Solid state circuitry control panel with highly visual LED Digital readouts allows Flexion and Extension of Elbow joint through a prefixed Range of Motion and Time.

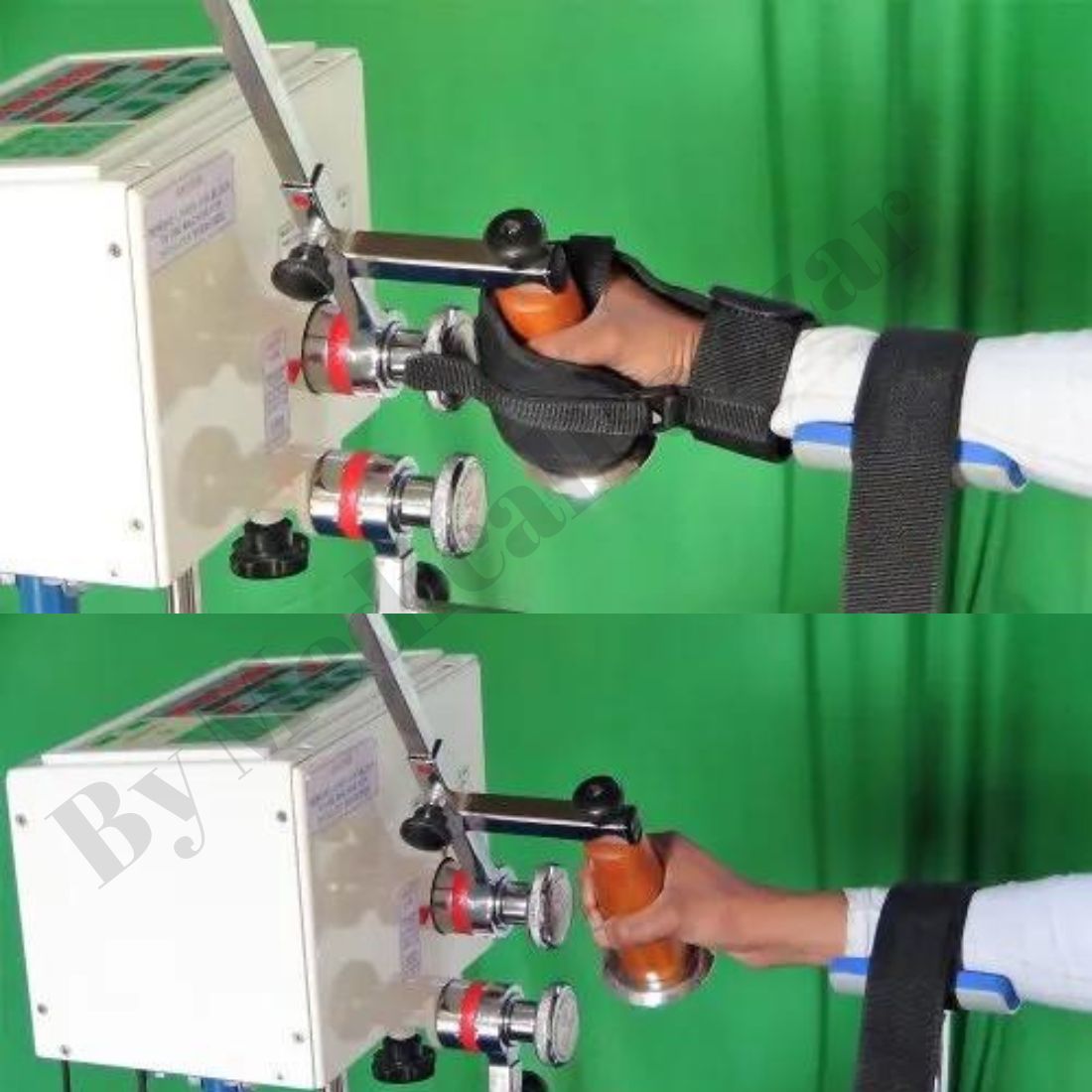

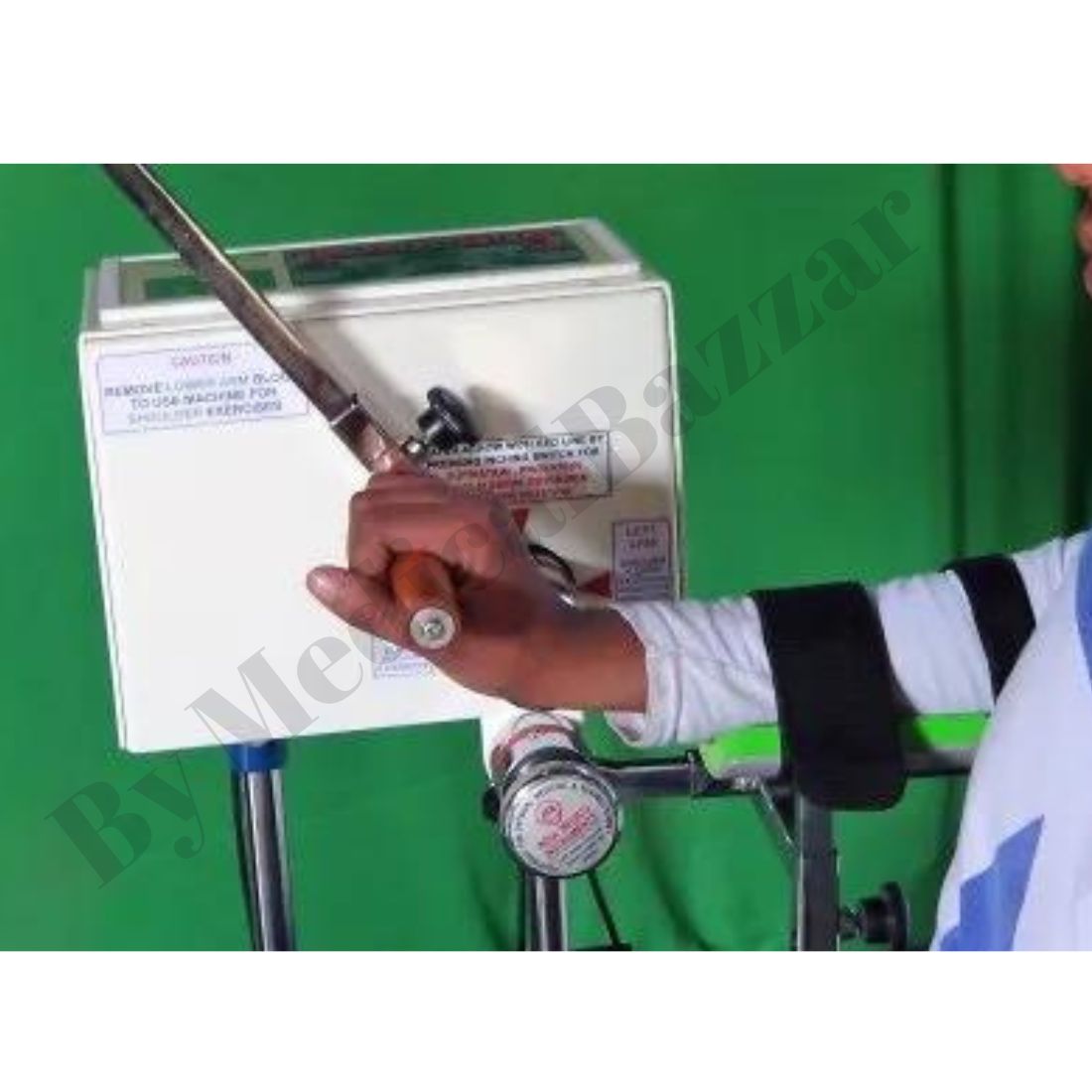

Wrist rotation and Wrist roll movement can also be achieved.

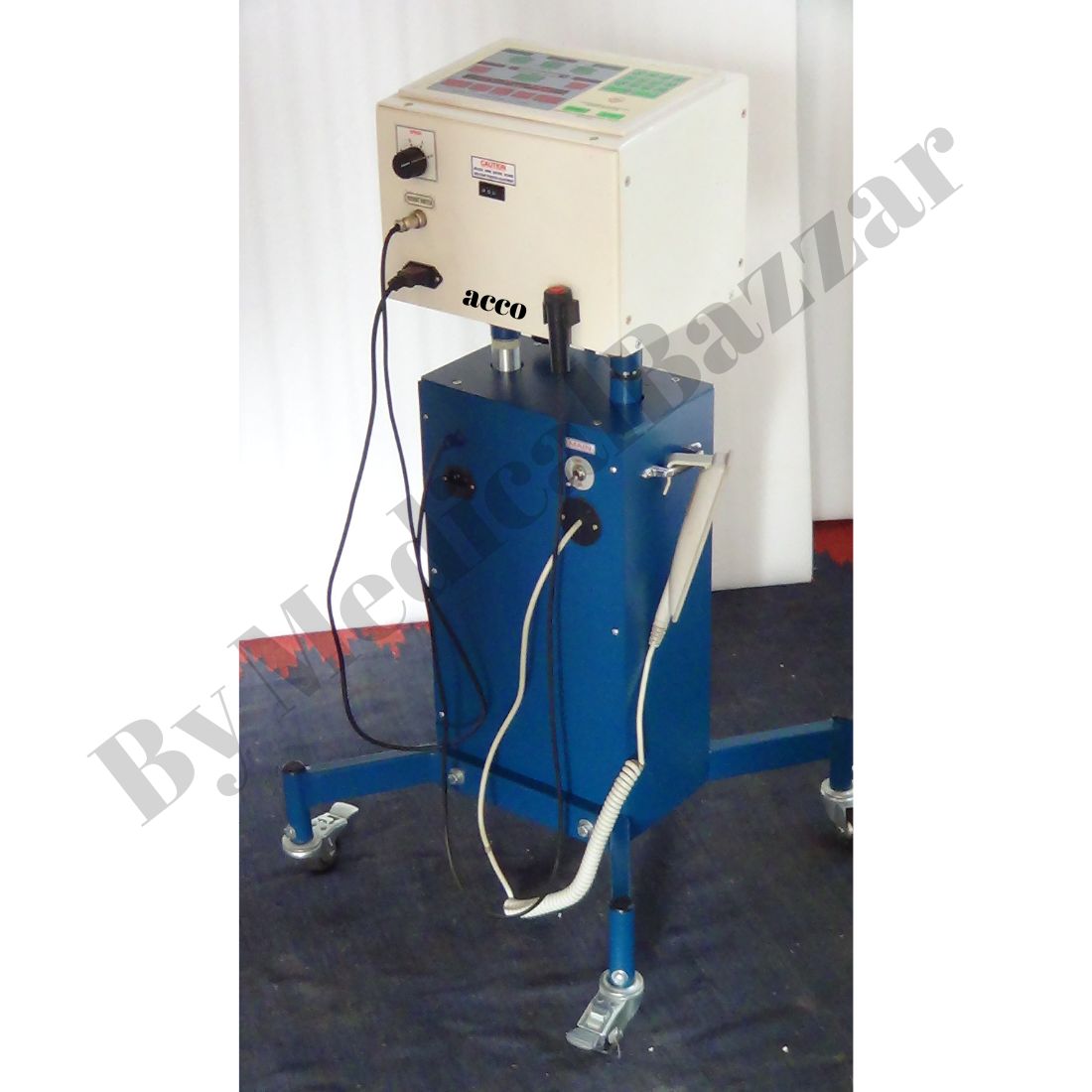

Unit is fitted on mobile Electrical Jack to adjust height according to patient requirement.

Comes with necessary accessories for Elbow passive motions, Supination / Pronation & Wrist Roll.

TECHNICAL SPECIFICATION:

* Therapy Modes: SIX, Mobilization Modes for Continuous, Intermittent and Progressive passive movements.

* ROM Setting : Programmable from 00 to 120deg for Elbow movements. And

   : -80 to + 80 for Wrist movements.

* Pause Time: Programmable Extension/Flexion Pauses from 00 to 99 seconds.

* Treatment Time: Programmable from 01 to 99 min.

* Inching Switch: Flexion or Extension starting position can be set according to the need of patient.

* Memory/Programme: 80 Pre-set treatment patterns are stored in memory.

* Open Programmes: 20 programmes are Free to store your own patterns.

* Displays: Digital display of ROM settings Pause Time, Treatment Time and Graphic display of Mobilization modes.

* Height Adjustment: Electrically, by Push button switches.

* Arm Settings: Right or Left arm can be set & exercised by little adjustments.

* Patient Safety: Patient can stop / Interrupt treatment with hand held switch.

* Power Supply: 200-240 V AC at 50-60 Hz.
