Upper Limb Continuous Passive Motion Unit -(Shoulder+Elbow+Wrist)

Upper Limb Continuous Passive Motion Unit -(Shoulder+Elbow+Wrist)

Rs. 123,000.00
Rs. 190,000.00 Rs. 123,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Upper Limb Continuous Passive Motion Unit -(Shoulder+Elbow+Wrist) - AMP-033142A

Product Details:
C.P.M: For Upper Extremities.
Wrist ROM: Programmable from -90 to +90deg for Wrist movements.
Elbow ROM: Programmable from 00 to 120deg for Elbow movements.
Shoulder ROM: Programmable from 00 to 180deg. and -90 to +90 degrees for all Shoulder movements.
Pause Time: Programmable Extension/Flexion Pauses from 00 to 99 seconds.
Memory/Programmed: 80 Pre-set treatment patterns are stored in memory.
Country of Origin Made in India

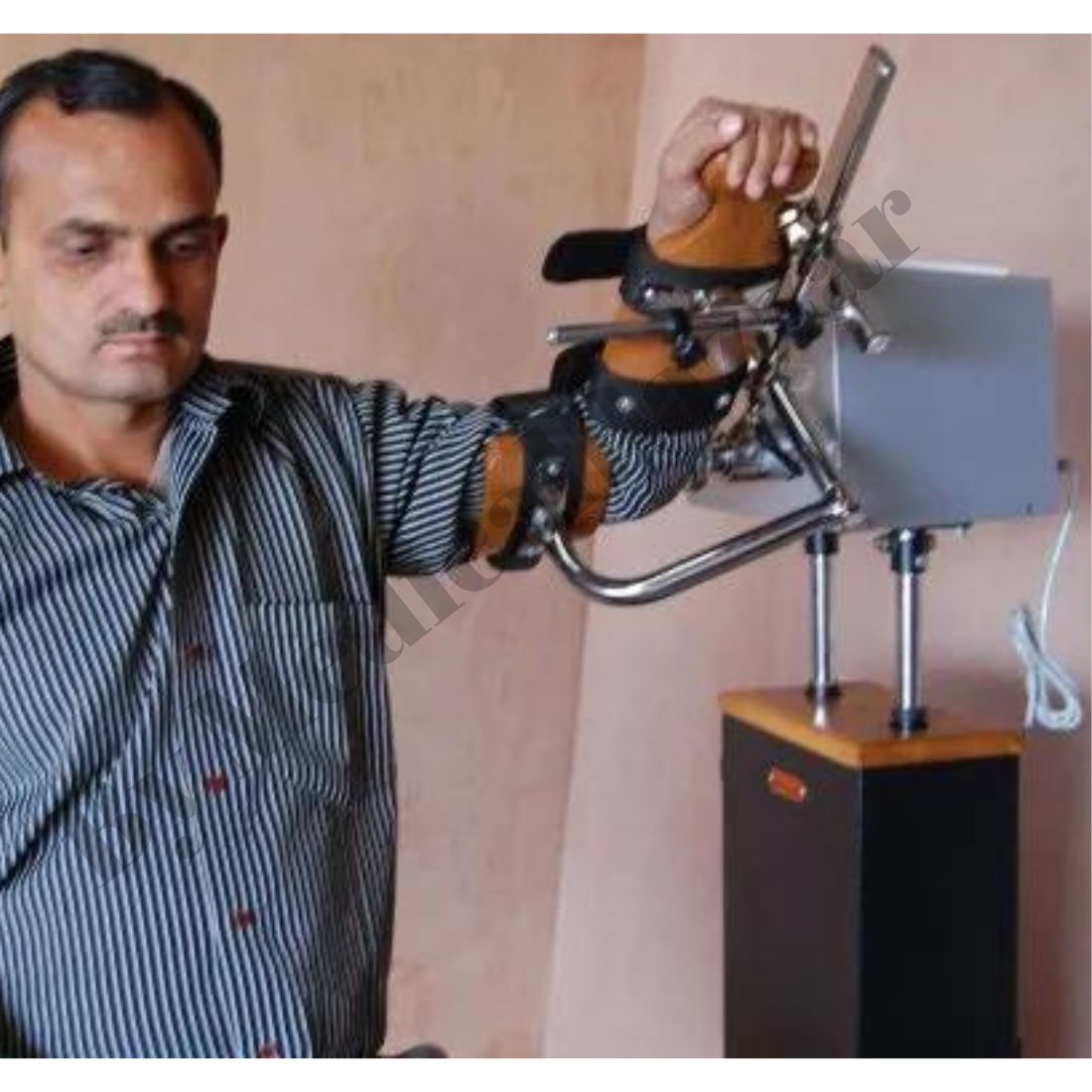

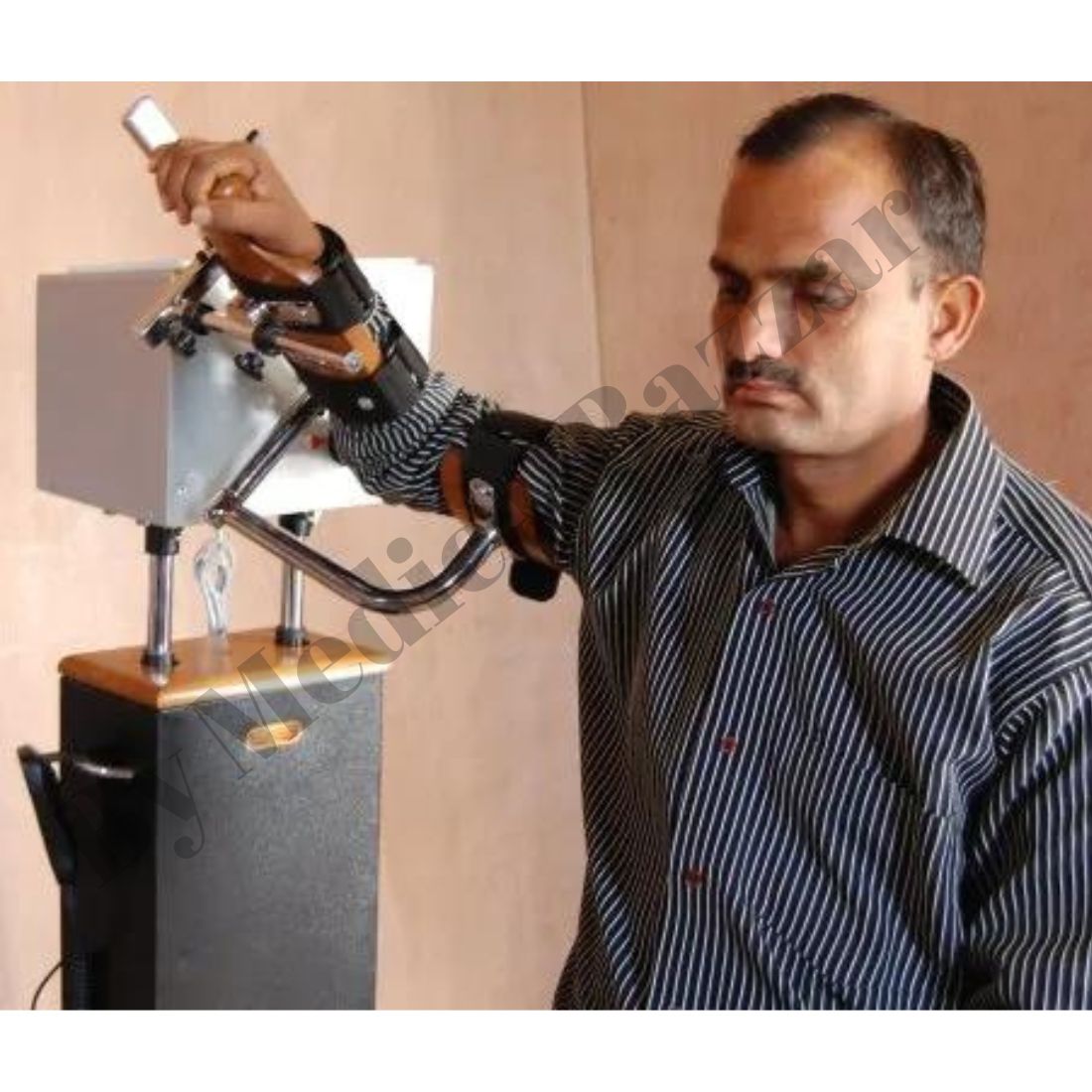

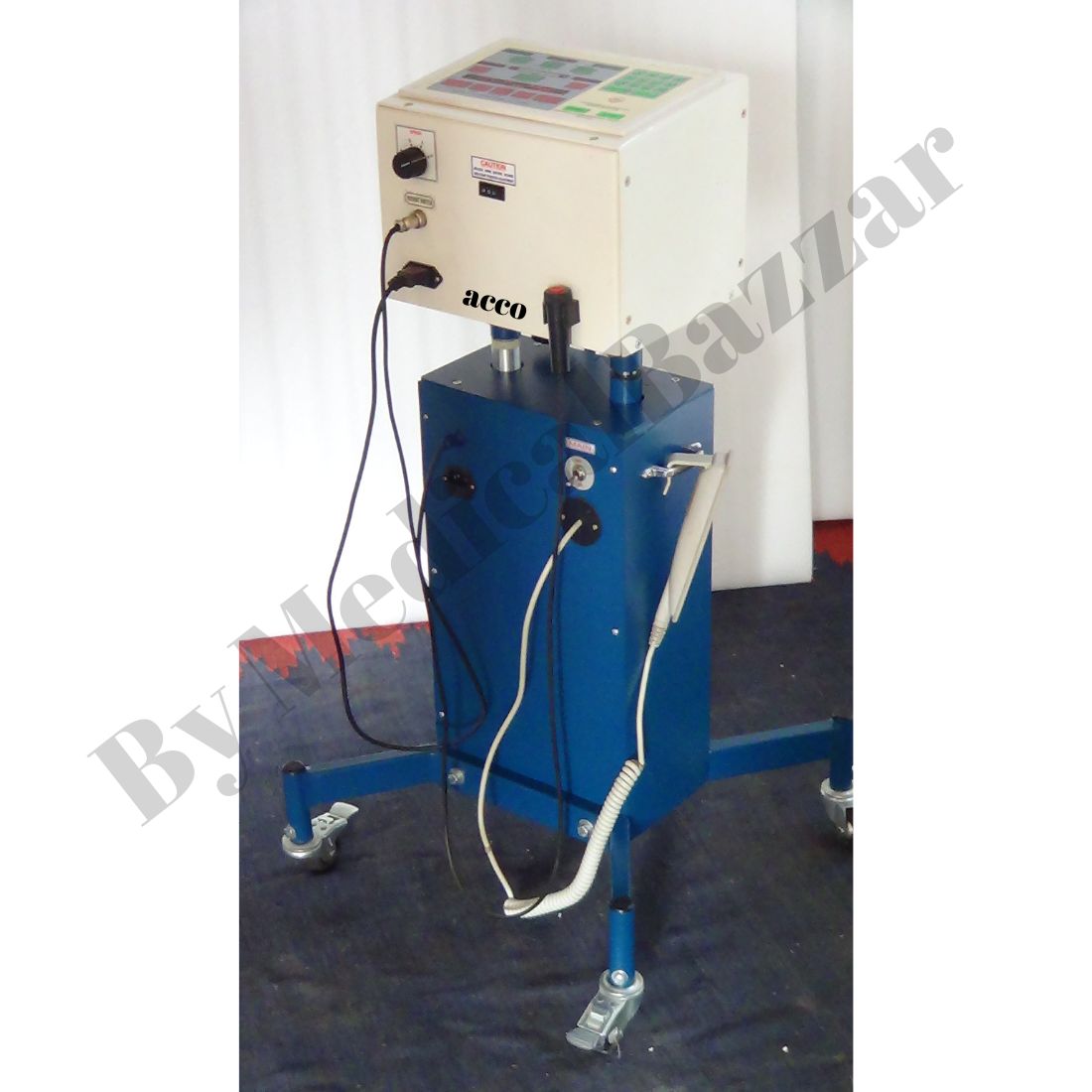

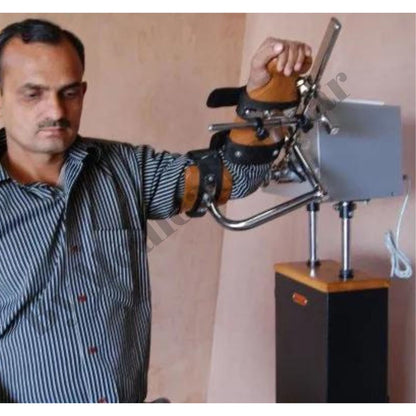

AMP-033142A. Combo CPM Set for Shoulder + Elbow + Wrist, it is a micro-computer controlled unit, represents the latest breakthrough in CPM technology. Solid state circuitry control panel with highly visual LED Digital readouts, it allows passive motions of Wrist, Elbow & Shoulder joints through prefixed Range of Motion and Time. Unit is fitted on mobile electrical Jack to adjust height according to patient''s requirement. Comes with all accessories.

TECHANICAL SPECIFICATION:

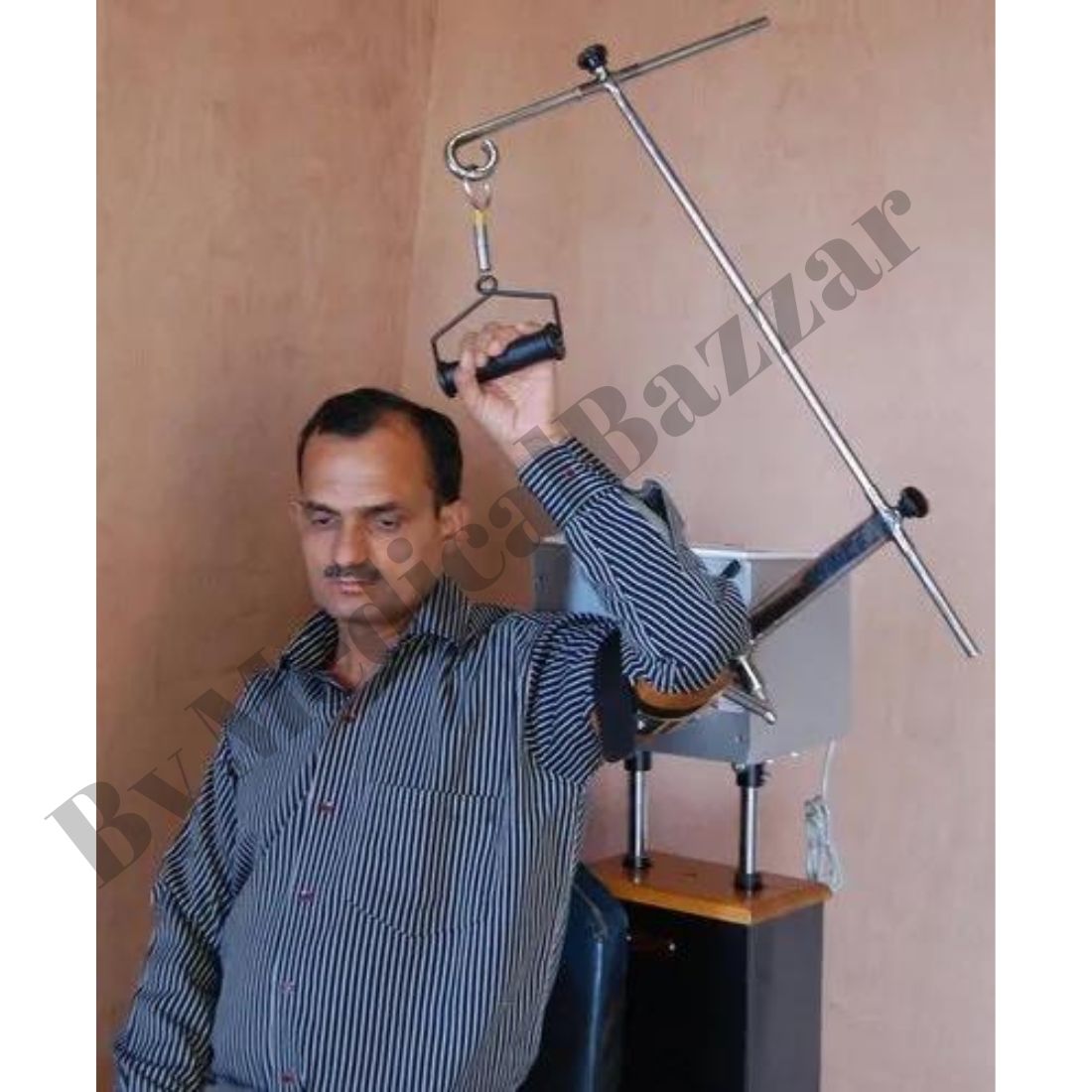

* Shoulder ROM Setting: Programmable from 00 to 180deg. and -90 to +90 degrees for all Shoulder movements.

* Elbow ROM Setting: Programmable from 00 to 120deg for Elbow movements.

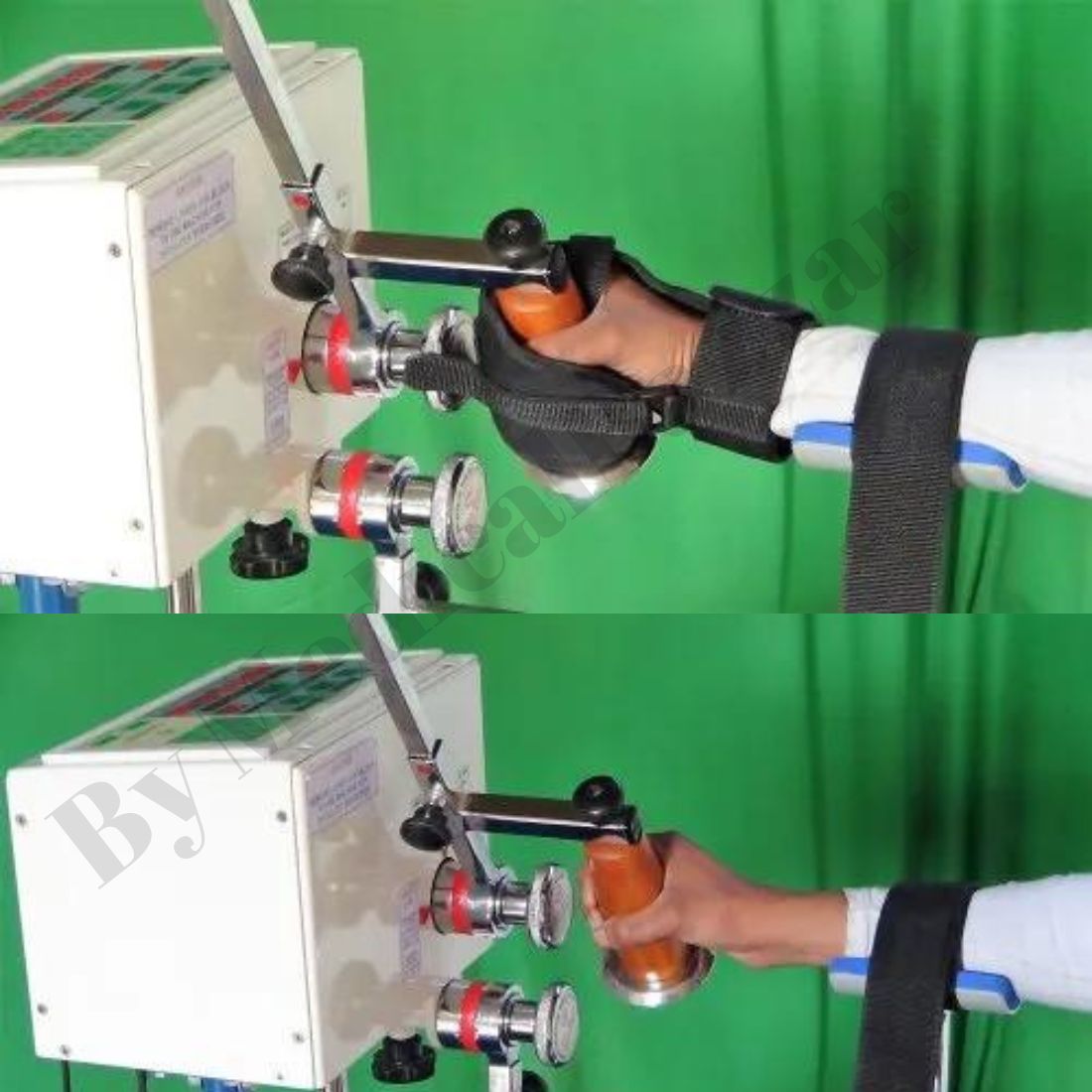

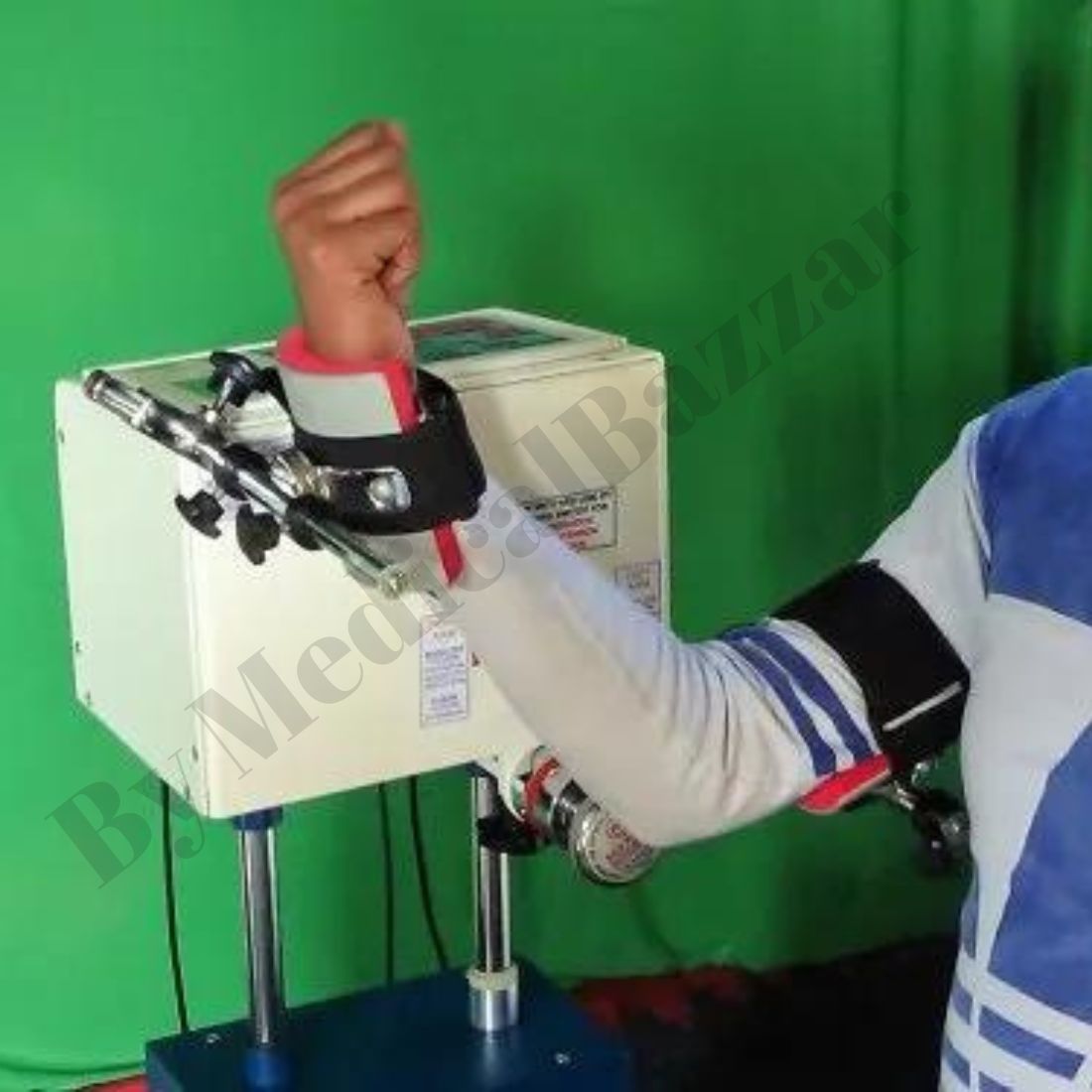

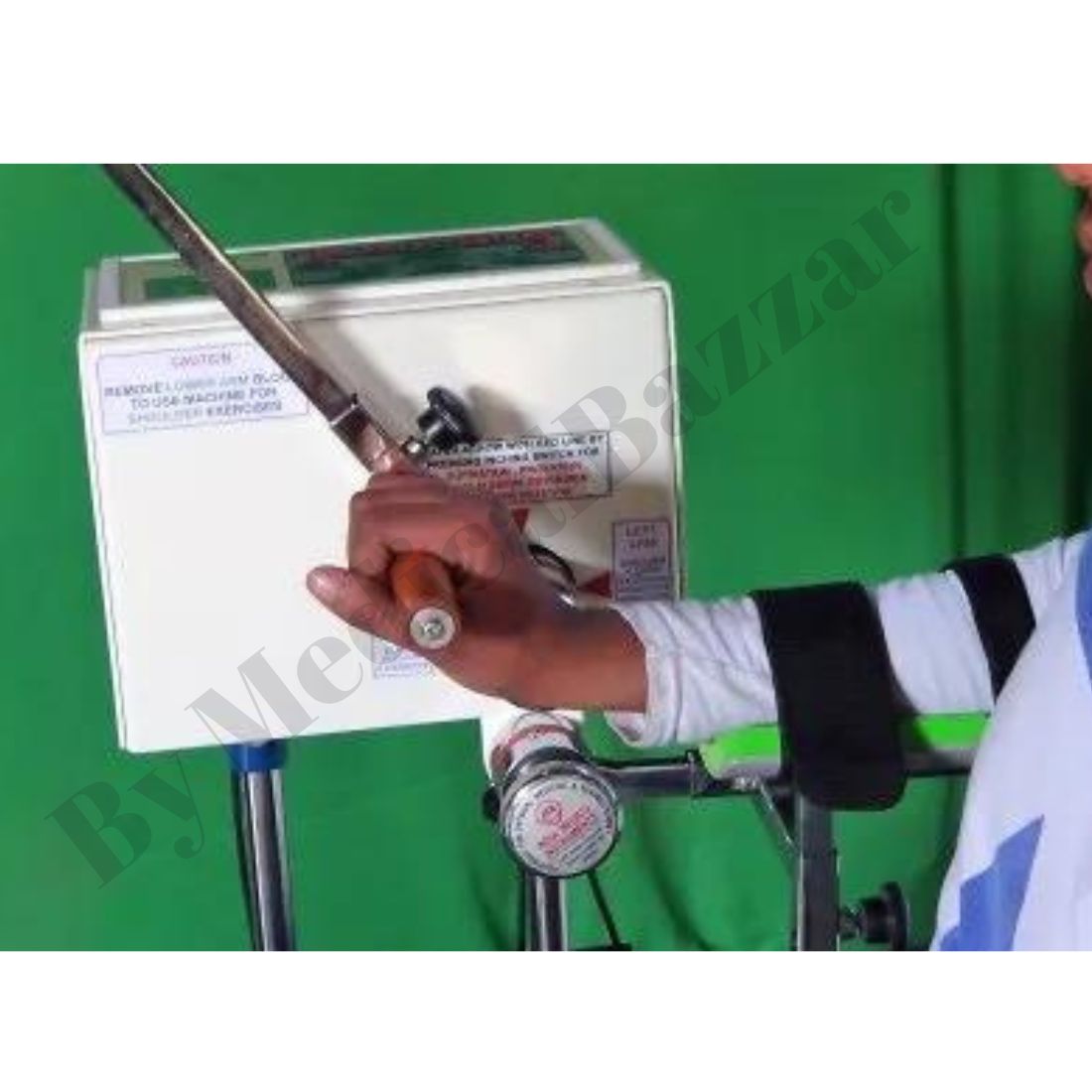

* Wrist ROM Setting Programmable from -90 to +90deg for Wrist movements.

* Therapy Modes: SIX, Mobilization Modes for Continuous, Intermittent and Progressive passive movements.

* ROM Pause Time: Programmable Extension/Flexion Pauses from 00 to 99 seconds.

* Treatment Time: Programmable from 01 to 99 min.

* Inching Switch: Starting position can be set according to the need of patient.

* Memory/Programme: 80 Pre-set treatment patterns are stored in memory.

* Open Programmes: 20 programmes are Free to store your own patterns.

* Displays.: Digital display of ROM settings, Pause Time, Treatment Time and Graphic display of Mobilization Modes.

* Height Adjustment: Electrically, by Push button switches.

* Arm Settings: Right or Left arm can be set & exercised with little adjustments.

* Patient Safety: Patient can stop / Interrupt treatment with hand held switch.

* Power Supply: 200-240 V AC at 50-60 Hz.
